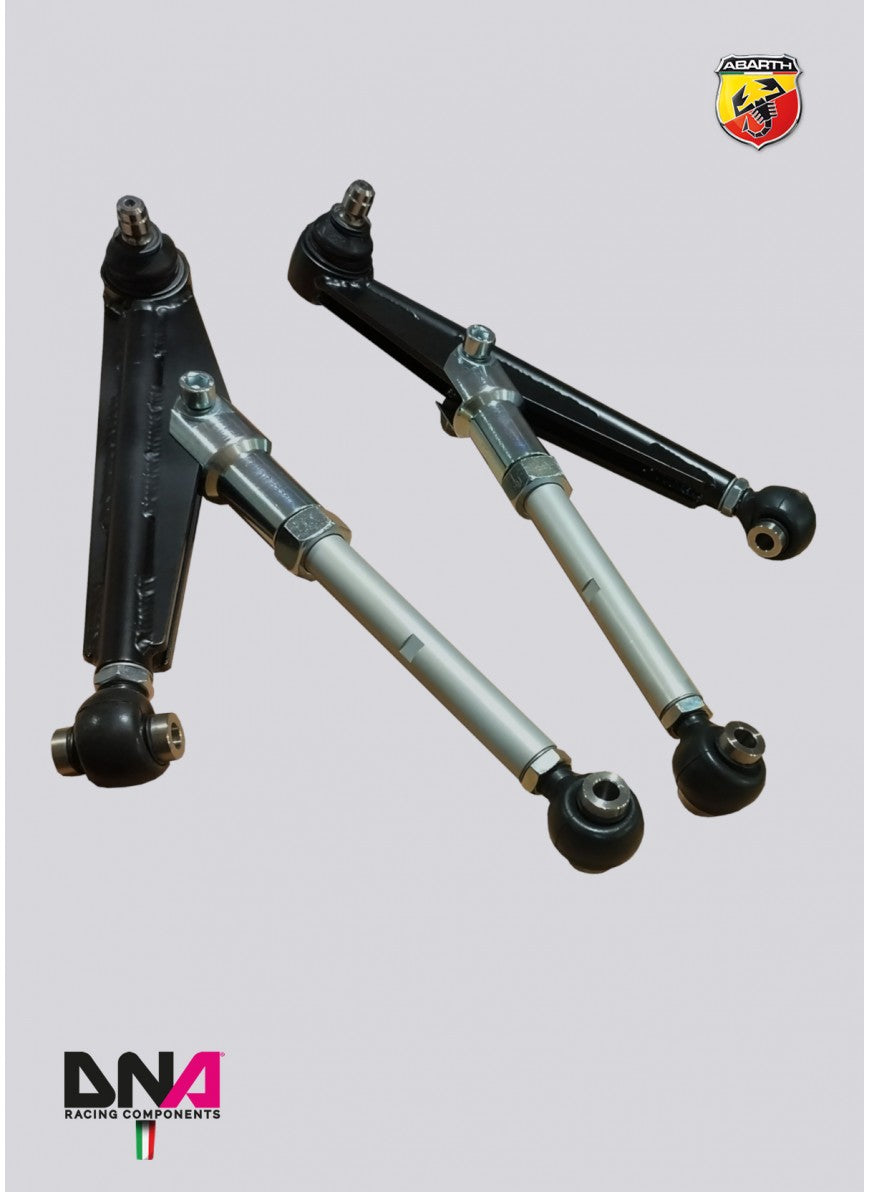

ABARTH 500 EU ADJUSTABLE CAMBER CASTER SUSPENSION ARMS KIT

The DNA Racing suspension kit allows for a significant improvement in road holding, better control of the suspension's characteristic angles, improved braking, better cornering, elimination of the tendency to go left and right during acceleration and a reduction in understeer.

The system includes motorsport uniballs and a new dirt protection system for the uniballs, making the suspension arms maintenance-free and ideal for road use.

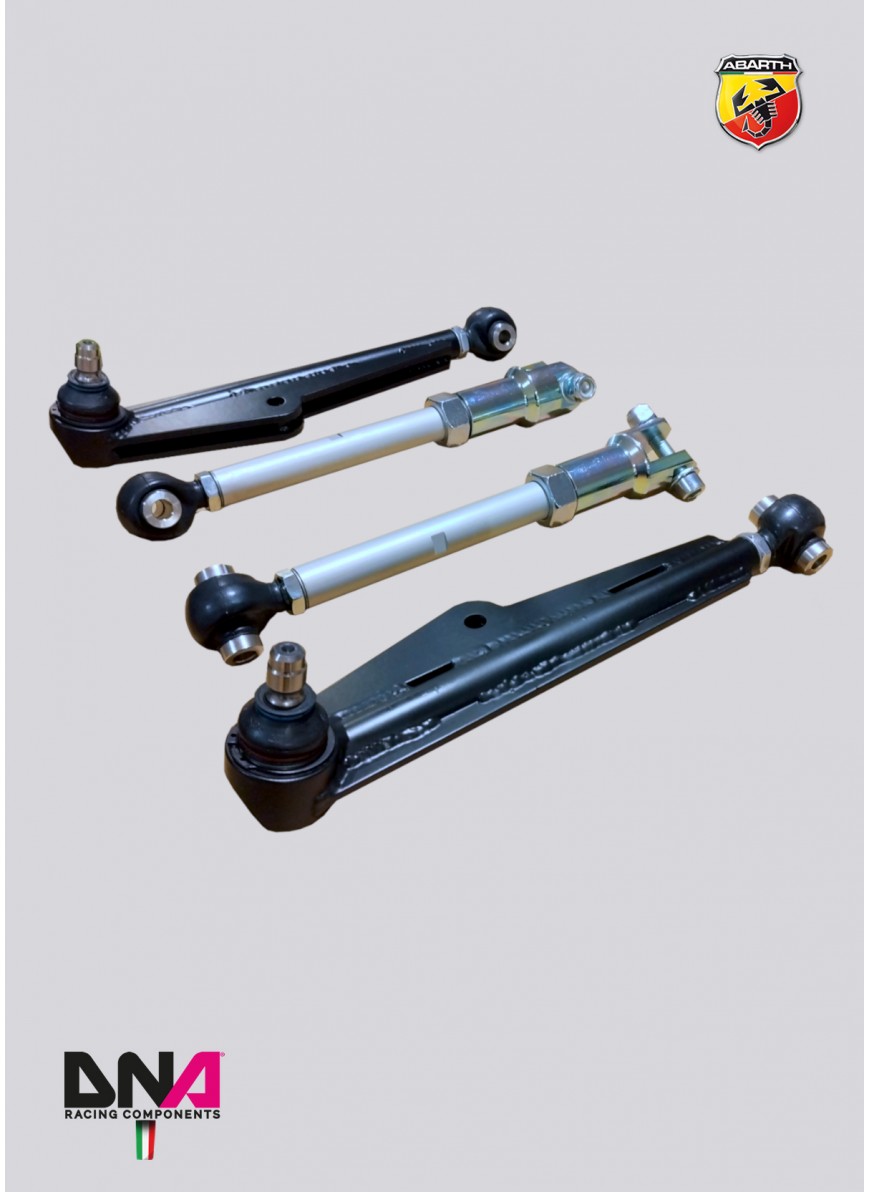

The kit includes the wishbones, the ball joints of the upright, four racing uniballs, the related spacers and dirt protectors and all the components necessary for the modification.

Given the complexity of the system, this kit should only be assembled by highly specialized personnel.

NB: Care must be taken when adjusting the length of the arm in particular to ensure correct play in the half-shaft joint slide.

DNA does not provide any form of guarantee due to incorrect assembly of the system which could cause breakages of the half-shafts and consequent damage to the transmission and other components in general.

Applications

Abarth 500 EU (2008 -)

Material

Cold-drawn carbon steel Fe36, MIG welded; Chromium-Molybdenum 42CrMo4; Ergal

Finish

Sandblasting, primer, heavy-duty matte black epoxy powder coating, clear coat; anodizing; white zinc plating
